Industrial heavy-duty CNC router
工業級重型開料機
適(shi)用于(yu)密度較大的板材開料
Suitable for the high-density panel nesting
12kw水冷工(gong)業級(ji)自動換刀(dao)主軸
12kw water-cooled industrial grade automatic tool changer spindle
35工業級防塵導軌
35 industrial anti-dust rail
超重型機架,雙層金屬真空吸附腔;
伺服重型圓盤(pan)(pan)換刀(dao)系統(tong),8把開(kai)料刀(dao)具圓盤(pan)(pan)刀(dao)庫+鉆包;
Super heavy-duty frame, two-layer vacuum adsorption cavity;Heavy duty servo round tool-changing system,
round 8-tool magazine+ drilling unit;

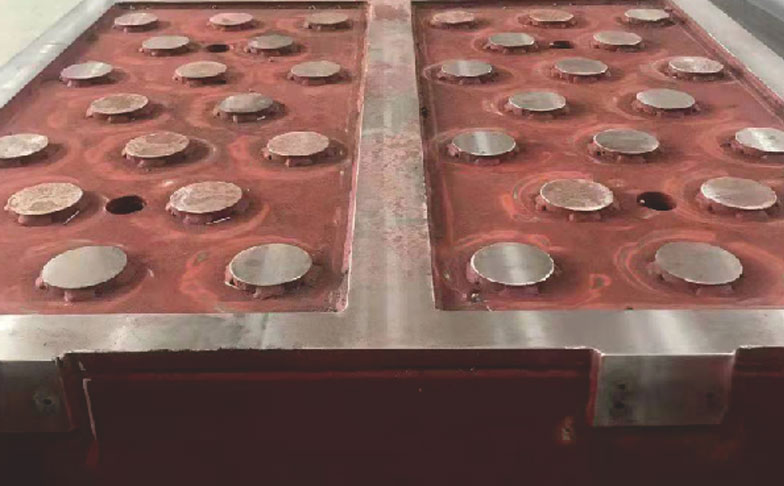

金屬真(zhen)空(kong)吸(xi)附腔+雙層真(zhen)空(kong)吸(xi)附
Two-layer vacuum adsorption cavity.
12KW 水冷(leng)工業級(ji)自動換(huan)刀主軸+9V鉆包(bao)組
12KW water-cooled automatic tool changer spindle + 9v drill pack set

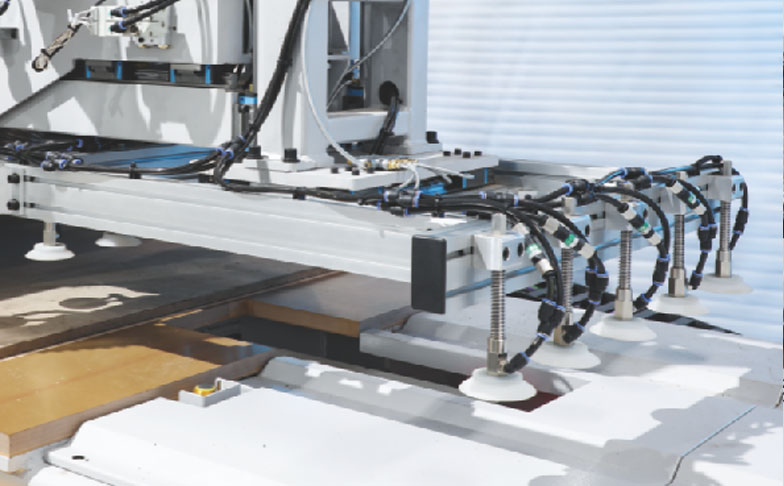

強力真空上料吸盤
Powerful vacuum feeding suction cup
產品參數
| 設備型號 | HE409EB |
|---|---|
加工尺寸 Working area | 1220×2750×30mm |
工作行程 Traveling area | 1600×4500×100mm |
空行速度 ldling speed | 80m/min |
工作速度 Workingspeed | 12-25m/min |
主軸功率 Spindle power | 12.0kw水冷(鉆包2.2kw) 12.0kw water-cooled(2.2kw drill pack) |
主軸轉速 Spindle speed | 18000r/min |
工作電壓 Working voltage | AC380V/3Ph/50Hz |
驅動系統 Driving system | 伺服驅動, Servo drive |
定位方式 Positioning method | 高精度雙定(ding)位(wei)氣缸+定(ding)位(wei)靠檔 High-precision double positioning cylinder+ positioning by gear |
臺面結構 Tabel Structure | 分區吸附臺面 Zone adsorption table |
| 水循環真空泵 Water cooled vacuum pump | 11kw |
外形尺寸 Dimensions | 5500×2300×2450mm |
吸塵口 Suction port | Φ200/Φ130/Φ130 |
總功率 Total power | 31kw |
重量 Weight | 4.6T |
注:本(ben)司對產品(pin)規(gui)格(ge)及設計細節不(bu)斷改(gai)良(liang)更(geng)新,上述功能(neng)(neng)與參數可能(neng)(neng)有優化改(gai)進,請(qing)與授權銷售(shou)單位確(que)認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
