加高壓梁
包覆式成型壓貼機構
- 產品詳情
- 參數視頻

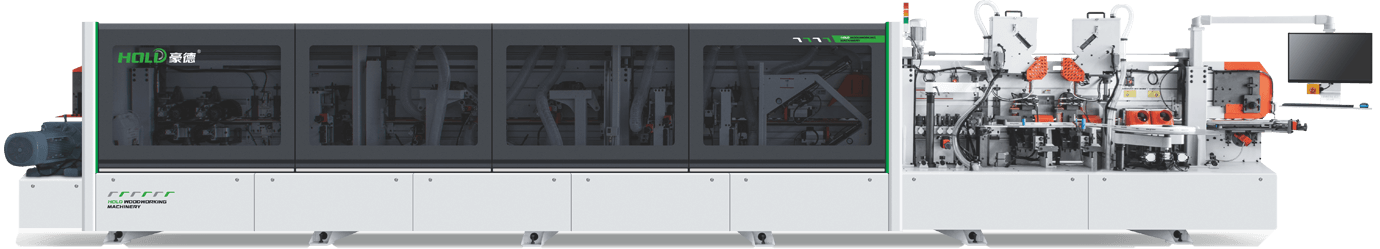

Heawyduty automatic highspeededge bandingmachine
重型全自動高速封邊機
子母門(men)/隱形門(men)封邊工藝
Unequal double door/ invisible door sealing process
加高壓梁
Heighten pressure beam
特(te)別設計的包(bao)覆式(shi)成型壓貼機構(gou)
Specially designed overmolding pressing mechanism
現場操作視頻
Operating video
產品參數
| 設備型號 | HD316 |
|---|---|
升降 Lifting | 電動升降 Elecric Lifting |
| 總功率(kw) Total power(kw) | 55 |
外形尺寸(mm) overall size(mm) | 9500 x 1200 x 1700 |
| 進給速度(m/min) Edge thickness(mm) | 6-10 |
封邊帶厚度(mm) Max.depth of horizontal drilling head | PVC:0.4-0.6 木皮（Veneer):0.4-0.5 |
板料厚度(mm) Panel thickness(mm) | PVC:10-60 木皮（Veneer):40-80 |
板料長度(mm) Panel length(mm) | ≥300 |
板料寬度(mm) Panel width(mm) | ≥200 |
| 工作氣壓(Mpa) Working pressure(Mpa) | 0.6 |
| 最小板材尺寸(mm) Min.panel size(mm) | 300x200 |
注:本司對產品規格及設(she)計細(xi)節不斷(duan)改(gai)良更新,上述功能(neng)與參數(shu)可(ke)能(neng)有優化改(gai)進,請與授權(quan)銷售單位確(que)認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
