高精度、
高效率、
超穩定、大規模批量開料
- 產品詳情
- 參數視頻
超強版工控電腦控制
Super powerful industrial computer control

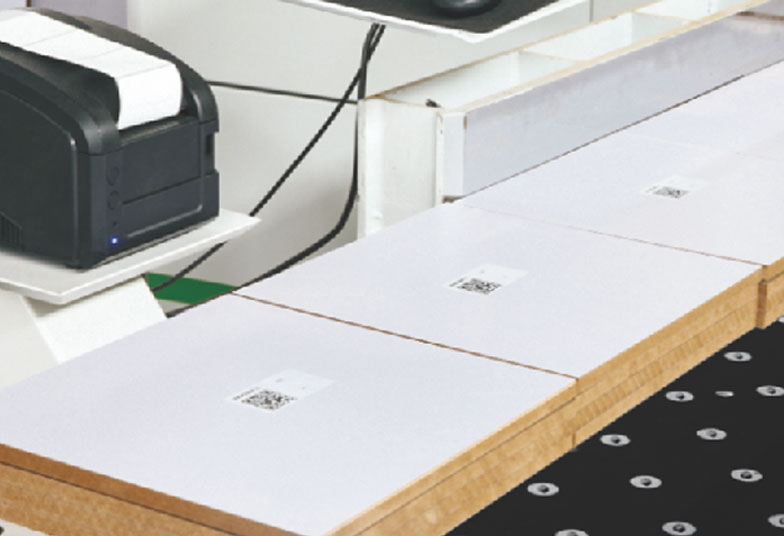

同步打印標簽
Lapel printer
鋸(ju)(ju)片根據(ju)鋸(ju)(ju)切厚度智能控(kong)制升降(jiang)(jiang)高(gao)(gao)度壓(ya)梁根據(ju)鋸(ju)(ju)切厚度智能控(kong)制升降(jiang)(jiang)高(gao)(gao)度鋸(ju)(ju)車伺服電機(ji)驅動
The saw blades height liits intelligenty aooording to the panels thicknessThe beams height lifts intelligently according to the panels thicknessServo motor drives the saw carriage
產品參數
| 設備型號 | HP290 |
|---|---|
上料方式 Feeding method | 前上料/Front feeding |
鋸(ju)切長(chang)度(du) Max.cutting length | 2900mm |
鋸切寬(kuan)度 Max.cutting width | 2900mm |
鋸片最大高度 Max.height of blade | 100mm智能升降 100mm intelligent lifting |
主鋸片 Main saw blade | 400×4.4/3.2×75×72T |
槽(cao)鋸(ju)片 Scoring saw blade | 160×5.3/3.2×45×24T |
鋸座(zuo)前進速度 Forward speed of saw carriage | 5-100m/min |
| 鋸座回程速度 Backward speed of saw carriage | 0-100m/min |
機械手前進速度(du) Forward speed of mechanical grippers | 0-100m/min |
機(ji)械(xie)手回程速度(du) Backward speed of mechanical grippers | 0-100m/min |
側(ce)壓(ya)裝置 Side pressure device | 氣動靠(kao)板 Pneumatic align panel |
主鋸軸馬(ma)達(da)功率 Motor power of main saw shaft | 15KW、可選18.5KW(optional) |
槽鋸軸馬達(da)功率 Motor power of scoring saw shaft | 2.2KW |
鋸車伺服電(dian)機(ji) Saw carriage servo motor | 1.8KW |
送料軸電(dian)機 Feeding shaft motor | 1.8KW |
側送料軸電機 Sid feedingshaft motor | - |
機械手數量 Mechanical gripper's quantity | 7PCS |
氣浮臺高壓風機 High pressure blower of airfloating table | 2.2KW |
后上料平臺尺寸 Rear feeding table's dimension | - |
包裝尺寸 Packing size | 5200x1150x1900mm 4100x920x1000mm |
機械占地面積 Floor area | 6650x5060x1850mm |
Weight Weight | 4200kg |
最小板材尺寸 Minimum cutting size | 50x30mm |
總功率 Total power | 23KW |
注:本司對產品規格及設計細節不斷(duan)改(gai)良更新,上述功能與參(can)數可能有優(you)化改(gai)進,請與授權銷售單(dan)位確(que)認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
