高精度、
高效率、
超穩定、大規模批量開料
- 產品詳情
- 參數視頻

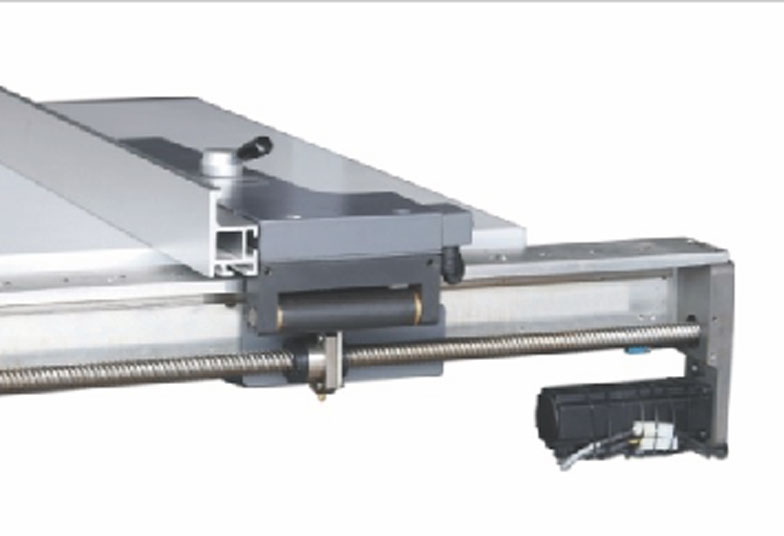

縱向靠尺(chi)采(cai)用伺服電機(ji)驅動確保(bao)鋸切尺(chi)寸精準度
Servo motor controls the movement of the fence which ensures the accuracy of cutting.

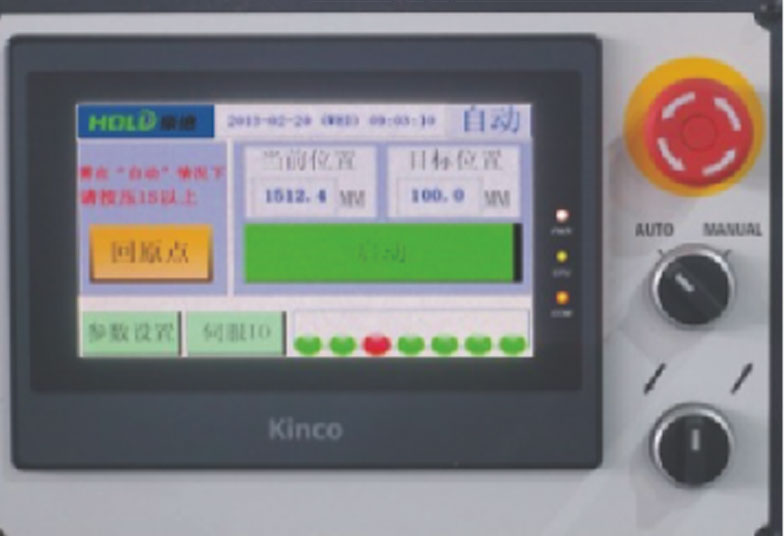

高性能觸摸屏清晰(xi)可靠操作(zuo)方便(bian)
High performance touch screenwhich is clear and easy for operation
導軌采用(yong)高鉻鋼,精度高使用(yong)壽命高

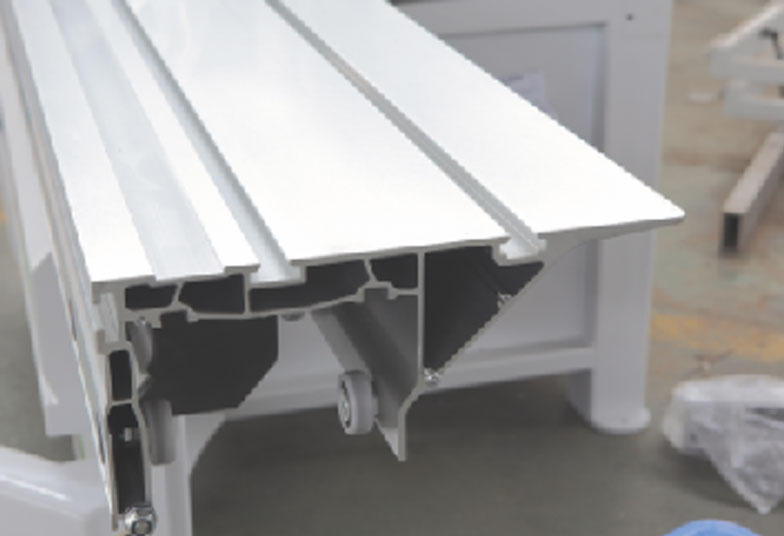

滑動工作(zuo)臺采用多點鎖定,極大(da)地提高(gao)了工作(zuo)效率
Tnhe guide rait using high chome steel, whichimproves working preclsion and extends sorvice lifra.
Slidling table has multipoint looking, improving work efficienoy greatly.
產品參數
| 設備型號 | MJ320DK |
|---|---|
| 推臺長度 Sliding table length | 3200mm |
鋸片最大高度 Max. working height | 90mm |
主鋸片最大直徑 Max.main saw blade dia | 350mm |
開槽鋸片直徑 Scoring saw blade dia | 120mmx20mm |
主鋸軸轉速 Main saw spindle speed | 4200r/min |
槽鋸軸轉速 Scoring saw spindle speed | 8500r/min |
主鋸電機功率 Main saw motor power | 5.5kw |
槽鋸電機功率 Scoring saw motor power | 0.75kw |
注:本司對產品規(gui)格及(ji)設計細節不(bu)斷(duan)改(gai)良更新,上述功能(neng)與(yu)參數可能(neng)有優(you)化改(gai)進(jin),請(qing)與(yu)授權銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
